Duration Standard friction stays
Available in top and side hung variants, our Duration Standard Friction Stays come in a choice of sizes to suit the majority of frame widths. The standard friction stays are manufactured from high quality stainless steel, ensuring a long life cycle, as well as a smooth operation of the window.
Duration Heavy Duty friction stays
Our Duration Heavy Duty Friction Stays are made from high quality stainless steel, and are suitable for many commercial applications, from uPVC to timber and aluminium. They are available in 12” and 16” for side hung applications, with the capability of holding up to 33 kg, and 16”, 20” and 24” for top hung applications, with the capability of holding up to 42kg.

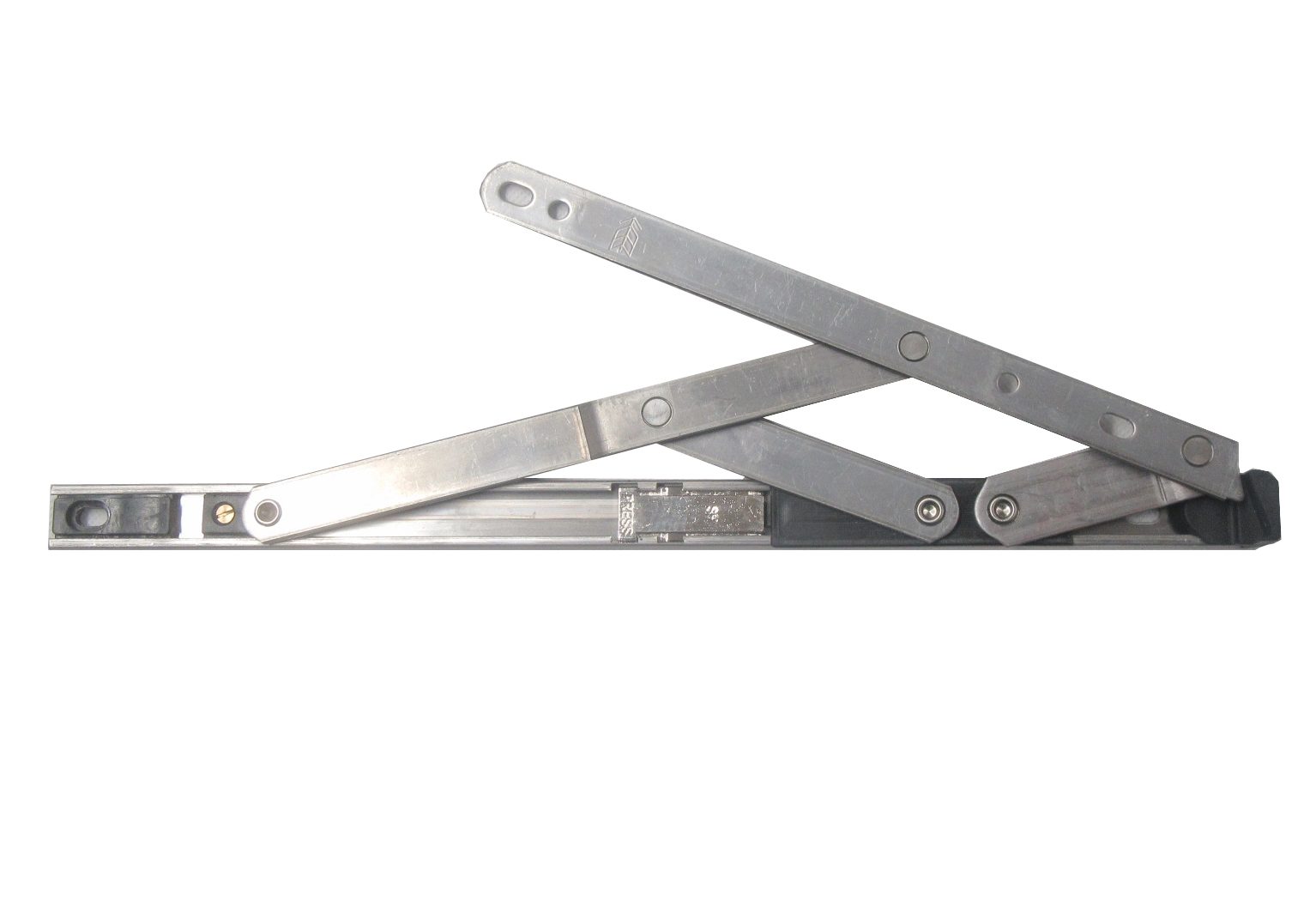

Duration Egress & Egress Easy Clean friction stays
The Duration Egress Easy Clean Friction Stays are available for side hung applications. Compatible with the majority of uPVC profile systems, with the options of either 13mm or 17mm stack heights and either 12” or 16”. They all come with a 10 year mechanical guarantee.
Trojan Mega Egress
The Trojan Mega Egress Friction Hinges combine emergency exit needs with an easy-clean function, and can accommodate all side hung applications. Thanks to the hinge’s superior strength, the 220 mm version and 345mm version suit all applications with sash widths of up to 600mm (33 kg load) and 900mm (40 kg load) respectively. 10 year mechanical guarantee.
Call the team on 0113 243 2255
Yale friction stays
The Yale friction stay is compatible with PVCu, timber and aluminium windows and are manufactured from ferritic stainless steel. We stock a range of Yale stays including egress only and they are all available in 13mm and 17mm stack heights. They all come with a 10 year mechanical guarantee.
Yale Defender Restricted Stay
The Yale Defender Restricted stays have a built in quick release lever which automatically relocates and resets when the window is closed. The Defender Restricted stay is both Secured by Design, and BBA certified.
Nico Atlas Heavy Duty Egress Easy Clean Stay
The Nico Atlas Heavy Duty Egress Easy Clean Stay accommodates sash weights up to 50kg and widths up to 1000mm. The hinges have been endurance tested with their maximum load carrying capacity for over 30,000 cycles.
DURATION FRICTION HINGES
Metal End Caps
Available in top and side hung variants, Duration Friction Hinges are designed to suit PVC-U, aluminium and timber windows. Featuring metal end caps for improved gasket compression, they deliver excellent weather sealing, draught proofing and long-term performance. Manufactured in Ferritic 430 or Austenitic 304 stainless steel, the range offers smooth, self-balanced operation and a proven long service life.
Duration Egress Easy Clean with Restrictor
The Duration Egress Easy Clean with Restrictor combines safe restricted opening with simple easy-clean functionality in one versatile friction stay. Designed exclusively by Total Hardware, it features a patented restrictor that can be added or removed at any stage of the window’s lifecycle, without additional screws or frame holes. Suitable for PVC-U and aluminium windows, it is available in 12”, 14” and 16” sizes, in both 13mm and 17mm stack heights. Manufactured from high quality Ferritic or Austenitic stainless steel, it has been tested to industry standards including PAS 24 compliance when used with a suitable hinge protector.
